NL8340 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, eight-cylinder, non-reversible diesel engine. It offers a power range of 2970 kW to 5369 kW and a speed range of 525 to 660 r/min. The bore and stroke are 340mm × 480 mm, with a total displacement of 348.64 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

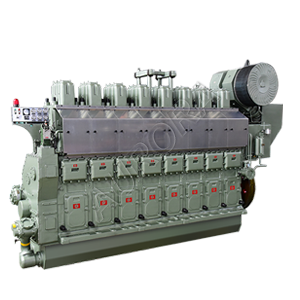

CSI-Ningdong-NL8340-Marine Engine
Engine ModelRated PowerRated SpeedEmission Standard
NL8340ZC4500 kW600 r/minIMO Tier II / Tier III
NL8340ZC24500 kW620 r/minIMO Tier II / Tier III
NL8340ZC44800 kW650 r/minIMO Tier II / Tier III
NL8340ZC64640 kW650 r/minIMO Tier II / Tier III
NL8340ZC84045 kW600 r/minIMO Tier II / Tier III
NL8340ZC103529 kW550 r/minIMO Tier II / Tier III
NL8340ZC122970 kW525 r/minIMO Tier II / Tier III
NL8340ZC145369 kW660 r/minIMO Tier II / Tier III
NL8340ZC205000 kW660 r/minIMO Tier II / Tier III
NL8340ZC245149 kW660 r/minIMO Tier II / Tier III
NL8340ZC285293 kW660 r/minIMO Tier II / Tier III
