DN6330 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, six-cylinder, non-reversible diesel engine. It offers a power range of 2206 kW to 2970 kW and a speed range of 550 to 650 r/min. The bore and stroke are 330mm × 450 mm, with a total displacement of 230.88 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

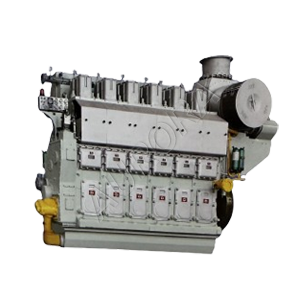

CSI-Ningdong-DN6330-Marine-Engine
Engine ModelRated PowerRated SpeedEmission Standard
DN6330ZC2206 kW550 r/minIMO Tier II / Tier III
DN6330ZC22206 kW600 r/minIMO Tier II / Tier III
DN6330ZC42427 kW600 r/minIMO Tier II / Tier III
DN6330ZC62648 kW600 r/minIMO Tier II / Tier III
DN6330ZC82795 kW600 r/minIMO Tier II / Tier III
DN6330ZC102206 kW620 r/minIMO Tier II / Tier III
DN6330ZC122427 kW620 r/minIMO Tier II / Tier III
DN6330ZC142574 kW620 r/minIMO Tier II / Tier III
DN6330ZC162795 kW650 r/minIMO Tier II / Tier III
DN6330ZC182970 kW650 r/minIMO Tier II / Tier III
DN6330ZC202795 kW620 r/minIMO Tier II / Tier III
