N8210 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, eight-cylinder, non-reversible diesel engine. It offers a power range of 588 kW to 1470 kW and a speed range of 600 to 1000 r/min. The bore and stroke are 210 mm × 300 mm, with a total displacement of 83.12 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

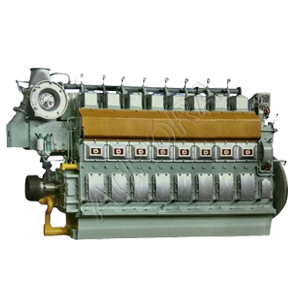

CSI-Ningdong-N8210-Marine Engine
Engine ModelRated PowerRated SpeedEmission Standard
N8210ZC2588 kW600 r/minIMO Tier II
N8210ZC3
N8210ZC6882 kW720 r/minIMO Tier II
N8210ZC7
N8210ZC8735 kW750 r/minIMO Tier II
N8210ZC9
N8210ZC10882 kW750 r/minIMO Tier II
N8210ZC11
N8210ZC121000 kW750 r/minIMO Tier II
N8210ZC13
N8210ZC141103 kW750 r/minIMO Tier II
N8210ZC15
N8210ZC161000 kW830 r/minIMO Tier II
N8210ZC17
N8210ZC181103 kW830 r/minIMO Tier II
N8210ZC19
N8210ZC221323 kW1000 r/minIMO Tier II
N8210ZC23
N8210ZC241470 kW1000 r/minIMO Tier II
N8210ZC25
