N8300 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, eight-cylinder, non-reversible diesel engine. It offers a power range of 1103 kW to 3089 kW and a speed range of 500 to 750 r/min. The bore and stroke are 300 mm × 380 mm, with a total displacement of 214.96 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

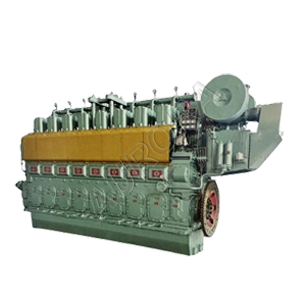

CSI-Ningdong-N8300-Marine Engine
Engine ModelRated PowerRated SpeedEmission Standard
N8300ZC1103 kW500 r/minIMO Tier II
N8300ZC21323 kW500 r/minIMO Tier II
N8300ZC41470 kW500 r/minIMO Tier II
N8300ZC61618 kW500 r/minIMO Tier II
N8300ZC81765 kW550 r/minIMO Tier II
N8300ZC102000 kW600 r/minIMO Tier II
N8300ZC122206 kW600 r/minIMO Tier II
N8300ZC142354 kW650 r/minIMO Tier II
N8300ZC162500 kW650 r/minIMO Tier II
N8300ZC182794 kW720 r/minIMO Tier II
N8300ZC202941 kW750 r/minIMO Tier II
N8300ZC223089 kW750 r/minIMO Tier II
N8300ZC262648 kW650 r/minIMO Tier II
N8300ZC1342574 kW630 r/minIMO Tier II
N8300ZC1382427 kW630 r/minIMO Tier II
N8300ZC1402354 kW630 r/minIMO Tier II
N8300ZC1801912 kW600 r/minIMO Tier II
N8300ZC1901838 kW550 r/minIMO Tier II
