NL6340 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, six-cylinder, non-reversible diesel engine. It offers a power range of 2206 kW to 3600 kW and a speed range of 500 to 650 r/min. The bore and stroke are 340mm × 480 mm, with a total displacement of 261.48 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

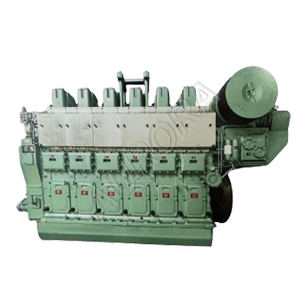

CSI-Ningdong-NL6340-Marine Engine
Engine ModelRated PowerRated SpeedEmission Standard
NL6340ZC3600 kW650 r/minIMO Tier II / Tier III
NL6340ZC23552 kW650 r/minIMO Tier II / Tier III
NL6340ZC43310 kW620 r/minIMO Tier II / Tier III
NL6340ZC83236 kW600 r/minIMO Tier II / Tier III
NL6340ZC123163 kW600 r/minIMO Tier II / Tier III
NL6340ZC143089 kW600 r/minIMO Tier II / Tier III
NL6340ZC182970 kW620 r/minIMO Tier II / Tier III
NL6340ZC202795 kW600 r/minIMO Tier II / Tier III
NL6340ZC242648 kW550 r/minIMO Tier II / Tier III
NL6340ZC282574 kW550 r/minIMO Tier II / Tier III
NL6340ZC302206 kW500 r/minIMO Tier II / Tier III
