DN8320 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, eight-cylinder, non-reversible diesel engine. It offers a power range of 2648 kW to 3310 kW and a speed range of 600 to 675 r/min. The bore and stroke are 320 mm × 380 mm, with a total displacement of 244.48 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

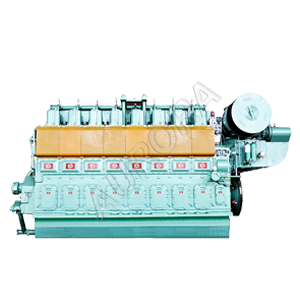

CSI-Ningdong-DN8320-Marine-Engine
Engine ModelRated PowerRated SpeedEmission Standard
DN8320ZC6B3089 kW650 r/minIMO Tier II / Tier III
DN8320ZC8B3310 kW675 r/minIMO Tier II / Tier III
DN8320ZC10B2648 kW600 r/minIMO Tier II / Tier III
DN8320ZC12B2795 kW630 r/minIMO Tier II / Tier III
DN8320ZC14B2970 kW650 r/minIMO Tier II / Tier III
