DN8330 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, eight-cylinder, non-reversible diesel engine. It offers a power range of 2970 kW to 4045 kW and a speed range of 600 to 650 r/min. The bore and stroke are 330mm × 450 mm, with a total displacement of 307.84 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

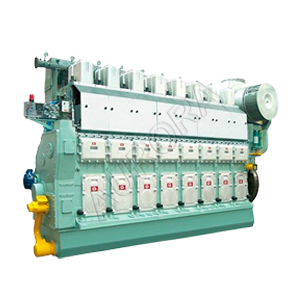

CSI-Ningdong-DN8330-Marine-Engine
Engine ModelRated PowerRated SpeedEmission Standard
DN8330ZC3310 kW620 r/minIMO Tier II / Tier III
DN8330ZC24045 kW650 r/minIMO Tier II / Tier III
DN8330ZC43676 kW650 r/minIMO Tier II / Tier III
DN8330ZC63000 kW620 r/minIMO Tier II / Tier III
DN8330ZC82970 kW620 r/minIMO Tier II / Tier III
DN8330ZC103089 kW600 r/minIMO Tier II / Tier III
DN8330ZC123163 kW600 r/minIMO Tier II / Tier III
DN8330ZC143236 kW600 r/minIMO Tier II / Tier III
DN8330ZC163310 kW600 r/minIMO Tier II / Tier III
DN8330ZC183163 kW620 r/minIMO Tier II / Tier III
DN8330ZC203552 kW650 r/minIMO Tier II / Tier III
