G8300 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, eight-cylinder, non-reversible diesel engine. It offers a power range of 1471 kW to 2648 kW and a speed range of 500 to 650 r/min. The bore and stroke are 300 mm × 380 mm, with a total displacement of 214.72 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

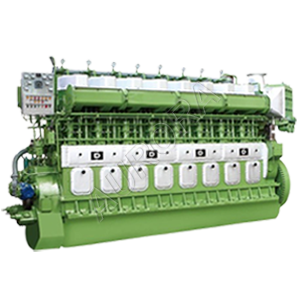

CSI-Ningdong-G8300-Marine-Engine
Engine ModelRated PowerRated SpeedEmission Standard
G8300ZC6B1471 kW500 r/minIMO Tier II
G8300ZC7B
G8300ZC6BH1500 kW500 r/minIMO Tier II
G8300ZC7BH
G8300ZC6Bs1471 kW550 r/minIMO Tier II
G8300ZC7Bs
G8300ZC16B2000 kW600 r/minIMO Tier II
G8300ZC17B
G8300ZC16Bs2000 kW575 r/minIMO Tier II
G8300ZC17Bs
G8300ZC18B1765 kW550 r/minIMO Tier II
G8300ZC19B
G8300ZC20B1765 kW500 r/minIMO Tier II
G8300ZC21B
G8300ZC22B2000 kW550 r/minIMO Tier II
G8300ZC23B
G8300ZC30B2206 kW600 r/minIMO Tier II
G8300ZC31B
G8300ZC32B2427 kW630 r/minIMO Tier II
G8300ZC33B
G8300ZC68B2500 kW650 r/minIMO Tier II
G8300ZC69B
G8300ZC72B2648 kW650 r/minIMO Tier II
G8300ZC73B
