NL9340 series marine diesel engine, developed by CSI Power (Ning Dong), is a four-stroke, inline, nine-cylinder, non-reversible diesel engine. It offers a power range of 2970 kW to 5737 kW and a speed range of 525 to 660 r/min. The bore and stroke are 340mm × 480 mm, with a total displacement of 392.22 liters.

To accommodate various engine room layouts, both port and starboard main engine configurations are available. The turbocharger can be positioned at either the front or rear of the engine. For the same engine model, clockwise and counterclockwise rotations (viewed from the flywheel end) are available to match the propeller’s rotation direction.

All CSI Power marine engines fully comply with the IMO Tier II emission standards established by the International Maritime Organization (IMO).

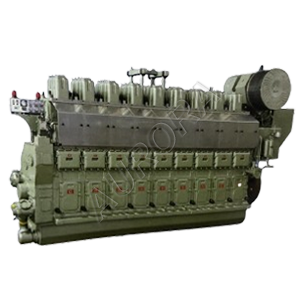

CSI-Ningdong-NL9340-Marine Engine
Engine ModelRated PowerRated SpeedEmission Standard
NL9340ZC5737 kW660 r/minIMO Tier II / Tier III
NL9340ZC45590 kW660 r/minIMO Tier II / Tier III
NL9340ZC85443 kW660 r/minIMO Tier II / Tier III
NL9340ZC125222 kW650 r/minIMO Tier II / Tier III
NL9340ZC145075 kW620 r/minIMO Tier II / Tier III
NL9340ZC164800 kW650 r/minIMO Tier II / Tier III
NL9340ZC204500 kW650 r/minIMO Tier II / Tier III
NL9340ZC304045 kW620 r/minIMO Tier II / Tier III
NL9340ZC383676 kW600 r/minIMO Tier II / Tier III
NL9340ZC463310 kW600 r/minIMO Tier II / Tier III
NL9340ZC622970 kW525 r/minIMO Tier II / Tier III
