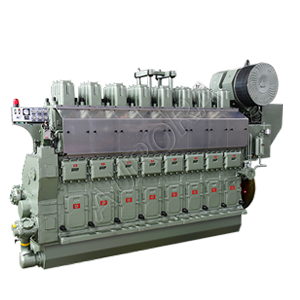

NL8340ZC10 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 3529 kW at 550 r/min, with a bore of 340 mm and a stroke of 480 mm. The NL8340ZC10 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
NL8340ZC10 Engine Technical Parameter
| Engine model | NL8340ZC10 |
| Rated power | 3529 kW |
| Rated speed | 550 r/min |
| Bore x stroke | 340 x 480 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 43.58 L |
| SFOC | ≤182+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2400 mm |
| Engine overall dimension | 6830x2540x4210 mm |
| Engine weight | 52000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- NL8340ZC10 Marine Engine Datasheet
- NL8340ZC10 Diesel Engine Outline Size Installation Diagram
- NL8340ZC10 Diesel Engine Operation Manual
- NL8340ZC10 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
