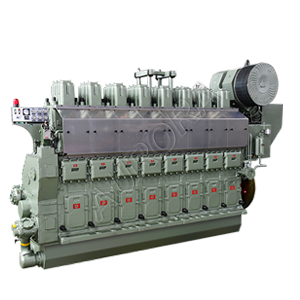

NL8340ZC6 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 4640 kW at 650 r/min, with a bore of 340 mm and a stroke of 480 mm. The NL8340ZC6 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
NL8340ZC6 Engine Technical Parameter
| Engine model | NL8340ZC6 |
| Rated power | 4640 kW |
| Rated speed | 650 r/min |
| Bore x stroke | 340 x 480 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 43.58 L |
| SFOC | ≤182+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2400 mm |
| Engine overall dimension | 6830x2540x4210 mm |
| Engine weight | 52000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- NL8340ZC6 Marine Engine Datasheet
- NL8340ZC6 Diesel Engine Outline Size Installation Diagram
- NL8340ZC6 Diesel Engine Operation Manual
- NL8340ZC6 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
