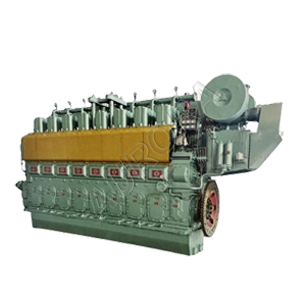

N8300ZC12 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 2206 kW at 600 r/min, with a bore of 300 mm and a stroke of 380 mm. The N8300ZC12 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
N8300ZC12 Engine Technical Parameter
| Engine model | N8300ZC12 |
| Rated power | 2206 kW |
| Rated speed | 600 r/min |
| Bore x stroke | 300 x 380 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 26.87 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 6360x1640x3395 mm |
| Engine weight | 30000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- N8300ZC12 Marine Engine Datasheet
- N8300ZC12 Diesel Engine Outline Size Installation Diagram
- N8300ZC12 Diesel Engine Operation Manual
- N8300ZC12 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
