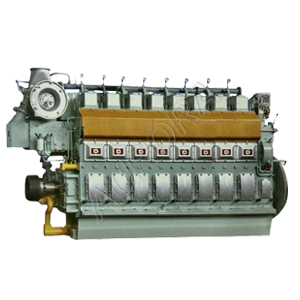

N8210ZC22 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 1323 kW at 1000 r/min, with a bore of 210 mm and a stroke of 300 mm. The N8210ZC22 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
N8210ZC22 Engine Technical Parameter
| Engine model | N8210ZC22 |
| Rated power | 1323 kW |
| Rated speed | 1000 r/min |
| Bore x stroke | 210 x 300 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 10.39 L |
| SFOC | ≤185+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air motor |
| Comp. ratio | 15 |
| Crankshaft direction | Starboard engine: Clockwise (aft. end) |
| Piston Lifting height | 1650 mm |
| Engine overall dimension | 4680x1415x2890 mm |
| Engine weight | 16500 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- N8210ZC22 Marine Engine Datasheet
- N8210ZC22 Diesel Engine Outline Size Installation Diagram
- N8210ZC22 Diesel Engine Operation Manual
- N8210ZC22 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
