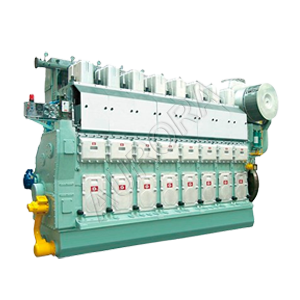

DN8330ZC Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 3310 kW at 620 r/min, with a bore of 330 mm and a stroke of 450 mm. The DN8330ZC engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
DN8330ZC Engine Technical Parameter
| Engine model | DN8330ZC |
| Rated power | 3310 kW |
| Rated speed | 620 r/min |
| Bore x stroke | 330 x 450 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 38.48 L |
| SFOC | ≤182+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2400 mm |
| Engine overall dimension | 6825x1925x3795 mm |
| Engine weight | 46500 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- DN8330ZC Marine Engine Datasheet
- DN8330ZC Diesel Engine Outline Size Installation Diagram
- DN8330ZC Diesel Engine Operation Manual
- DN8330ZC Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
