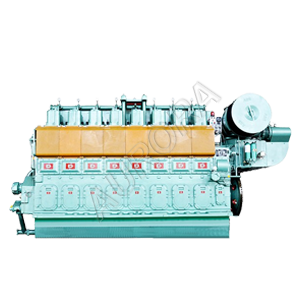

DN8320ZC8B Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 3310 kW at 675 r/min, with a bore of 320 mm and a stroke of 380 mm. The DN8320ZC8B engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
DN8320ZC8B Engine Technical Parameter
| Engine model | DN8320ZC8B |
| Rated power | 3310 kW |
| Rated speed | 675 r/min |
| Bore x stroke | 320 x 380 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 30.56 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 6085x2125x3315 mm |
| Engine weight | 34000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- DN8320ZC8B Marine Engine Datasheet
- DN8320ZC8B Diesel Engine Outline Size Installation Diagram
- DN8320ZC8B Diesel Engine Operation Manual
- DN8320ZC8B Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
