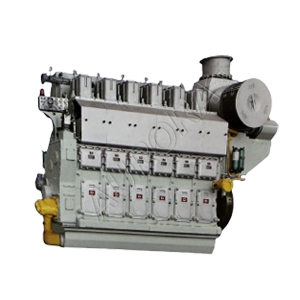

DN6330ZC2 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 6-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 2206 kW at 600 r/min, with a bore of 330 mm and a stroke of 450 mm. The DN6330ZC2 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
DN6330ZC2 Engine Technical Parameter
| Engine model | DN6330ZC2 |
| Rated power | 2206 kW |
| Rated speed | 600 r/min |
| Bore x stroke | 330 x 450 mm |
| Type | 4 stroke, straight-line, 6 cylinders |
| Displacement / CYL | 38.48 L |
| SFOC | ≤182+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2400 mm |
| Engine overall dimension | 5435x2260x3880 mm |
| Engine weight | 37500 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- DN6330ZC2 Marine Engine Datasheet
- DN6330ZC2 Diesel Engine Outline Size Installation Diagram
- DN6330ZC2 Diesel Engine Operation Manual
- DN6330ZC2 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
