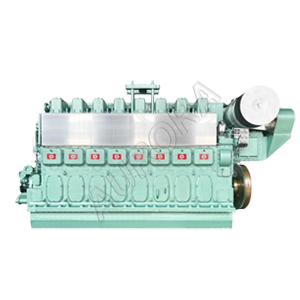

NL8300ZC16 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 2941 kW at 750 r/min, with a bore of 300 mm and a stroke of 420 mm. The NL8300ZC16 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
NL8300ZC16 Engine Technical Parameter
| Engine model | NL8300ZC16 |
| Rated power | 2941 kW |
| Rated speed | 750 r/min |
| Bore x stroke | 300 x 420 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 29.67 L |
| SFOC | ≤180+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2400 mm |
| Engine overall dimension | 6560x1650x3960 mm |
| Engine weight | 40000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- NL8300ZC16 Marine Engine Datasheet
- NL8300ZC16 Diesel Engine Outline Size Installation Diagram
- NL8300ZC16 Diesel Engine Operation Manual
- NL8300ZC16 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
