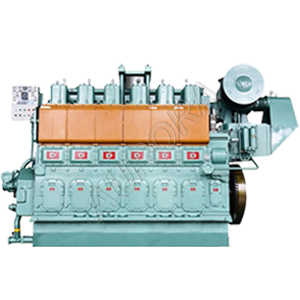

N6300ZC26 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 6-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 1470 kW at 750 r/min, with a bore of 300 mm and a stroke of 380 mm. The N6300ZC26 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
N6300ZC26 Engine Technical Parameter
| Engine model | N6300ZC26 |
| Rated power | 1470 kW |
| Rated speed | 750 r/min |
| Bore x stroke | 300 x 380 mm |
| Type | 4 stroke, straight-line, 6 cylinders |
| Displacement / CYL | 26.87 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Comp. ratio | 13 |
| Crankshaft direction | Clockwise (aft. end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 5430x1640x3250 mm |
| Engine weight | 24800 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- N6300ZC26 Marine Engine Datasheet
- N6300ZC26 Diesel Engine Outline Size Installation Diagram
- N6300ZC26 Diesel Engine Operation Manual
- N6300ZC26 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
