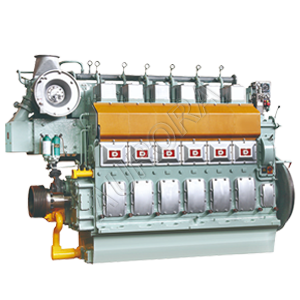

N6210ZC52 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 6-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 720 kW at 750 r/min, with a bore of 210 mm and a stroke of 300 mm. The N6210ZC52 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
N6210ZC52 Engine Technical Parameter
| Engine model | N6210ZC52 |
| Rated power | 720 kW |
| Rated speed | 750 r/min |
| Bore x stroke | 210 x 300 mm |
| Type | 4 stroke, straight-line, 6 cylinders |
| Displacement / CYL | 10.39 L |
| SFOC | ≤185+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air motor |
| Comp. ratio | 15 |
| Crankshaft direction | Starboard engine: Clockwise (aft. end) |
| Piston Lifting height | 1650 mm |
| Engine overall dimension | 3710x1600x2580 mm |
| Engine weight | 12500 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- N6210ZC52 Marine Engine Datasheet
- N6210ZC52 Diesel Engine Outline Size Installation Diagram
- N6210ZC52 Diesel Engine Operation Manual
- N6210ZC52 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
