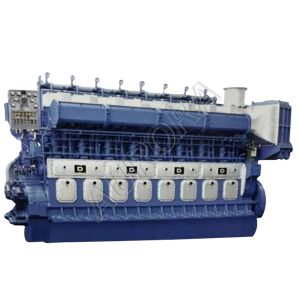

GN8320ZC1 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 8-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 2206 kW at 600 r/min, with a bore of 320 mm and a stroke of 380 mm. The GN8320ZC1 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
GN8320ZC1 Engine Technical Parameter
| Engine model | GN8320ZC1 |
| Rated power | 2206 kW |
| Rated speed | 600 r/min |
| Bore x stroke | 320 x 380 mm |
| Type | 4 stroke, straight-line, 8 cylinders |
| Displacement / CYL | 30.56 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Comp. ratio | 13 |
| Crankshaft direction | Port engine：Counterclockwise(aft.end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 6175x1790x2940 mm |
| Engine weight | 27000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- GN8320ZC1 Marine Engine Datasheet
- GN8320ZC1 Diesel Engine Outline Size Installation Diagram
- GN8320ZC1 Diesel Engine Operation Manual
- GN8320ZC1 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
