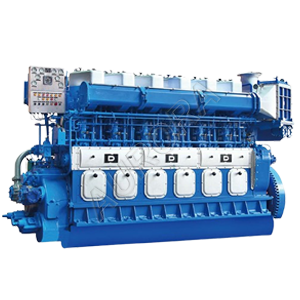

GN6320ZC6B Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 6-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 1323 kW at 600 r/min, with a bore of 320 mm and a stroke of 380 mm. The GN6320ZC6B engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
GN6320ZC6B Engine Technical Parameter
| Engine model | GN6320ZC6B |
| Rated power | 1323 kW |
| Rated speed | 600 r/min |
| Bore x stroke | 320 x 380 mm |
| Type | 4 stroke, straight-line, 6 cylinders |
| Displacement / CYL | 30.56 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Comp. ratio | 13 |
| Crankshaft direction | Starboard engine: Clockwise (aft. end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 5020x1580x2780 mm |
| Engine weight | 22000 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- GN6320ZC6B Marine Engine Datasheet
- GN6320ZC6B Diesel Engine Outline Size Installation Diagram
- GN6320ZC6B Diesel Engine Operation Manual
- GN6320ZC6B Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
