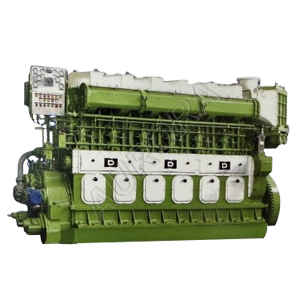

G6300ZCBa1 Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 6-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 662 kW at 400 r/min, with a bore of 300 mm and a stroke of 380 mm. The G6300ZCBa1 engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
G6300ZCBa1 Engine Technical Parameter
| Engine model | G6300ZCBa1 |
| Rated power | 662 kW |
| Rated speed | 400 r/min |
| Bore x stroke | 300 x 380 mm |
| Type | 4 stroke, straight-line, 6 cylinders |
| Displacement / CYL | 26.84 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Comp. ratio | 13 |
| Crankshaft direction | Port engine：Counterclockwise(aft.end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 5020x1580x2780 mm |
| Engine weight | 19500 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- G6300ZCBa1 Marine Engine Datasheet
- G6300ZCBa1 Diesel Engine Outline Size Installation Diagram
- G6300ZCBa1 Diesel Engine Operation Manual
- G6300ZCBa1 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
