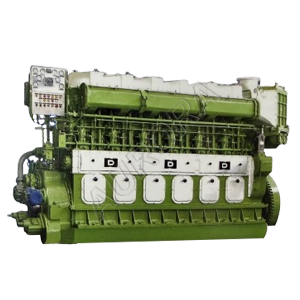

G6300ZC16Bs Engine, manufactured by Ningbo C.S.I. Power & Machinery Group Co., Ltd., is a reliable and efficient 6-cylinder, 4-stroke, straight-line diesel engine. It delivers a rated power of 1471 kW at 575 r/min, with a bore of 300 mm and a stroke of 380 mm. The G6300ZC16Bs engine fully complies with the IMO Tier II emission requirements, ensuring excellent performance, durability, and environmental compliance for marine propulsion applications.
G6300ZC16Bs Engine Technical Parameter
| Engine model | G6300ZC16Bs |
| Rated power | 1471 kW |
| Rated speed | 575 r/min |
| Bore x stroke | 300 x 380 mm |
| Type | 4 stroke, straight-line, 6 cylinders |
| Displacement / CYL | 26.84 L |
| SFOC | ≤195+3% g/kW·h |
| SLOC | 0.6 g/kW·h |
| Start method | Compressed air |
| Comp. ratio | 13 |
| Crankshaft direction | Starboard engine: Clockwise (aft. end) |
| Piston Lifting height | 2600 mm |
| Engine overall dimension | 5020x1580x2780 mm |
| Engine weight | 19500 kg |
| Emission standard | IMO Tier II |
Optional Configuration
- Cooler
- Governor
- Silencer
- Exhaust expansion joint
- Classification society
- Emission standard
- G6300ZC16Bs Marine Engine Datasheet
- G6300ZC16Bs Diesel Engine Outline Size Installation Diagram
- G6300ZC16Bs Diesel Engine Operation Manual
- G6300ZC16Bs Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
